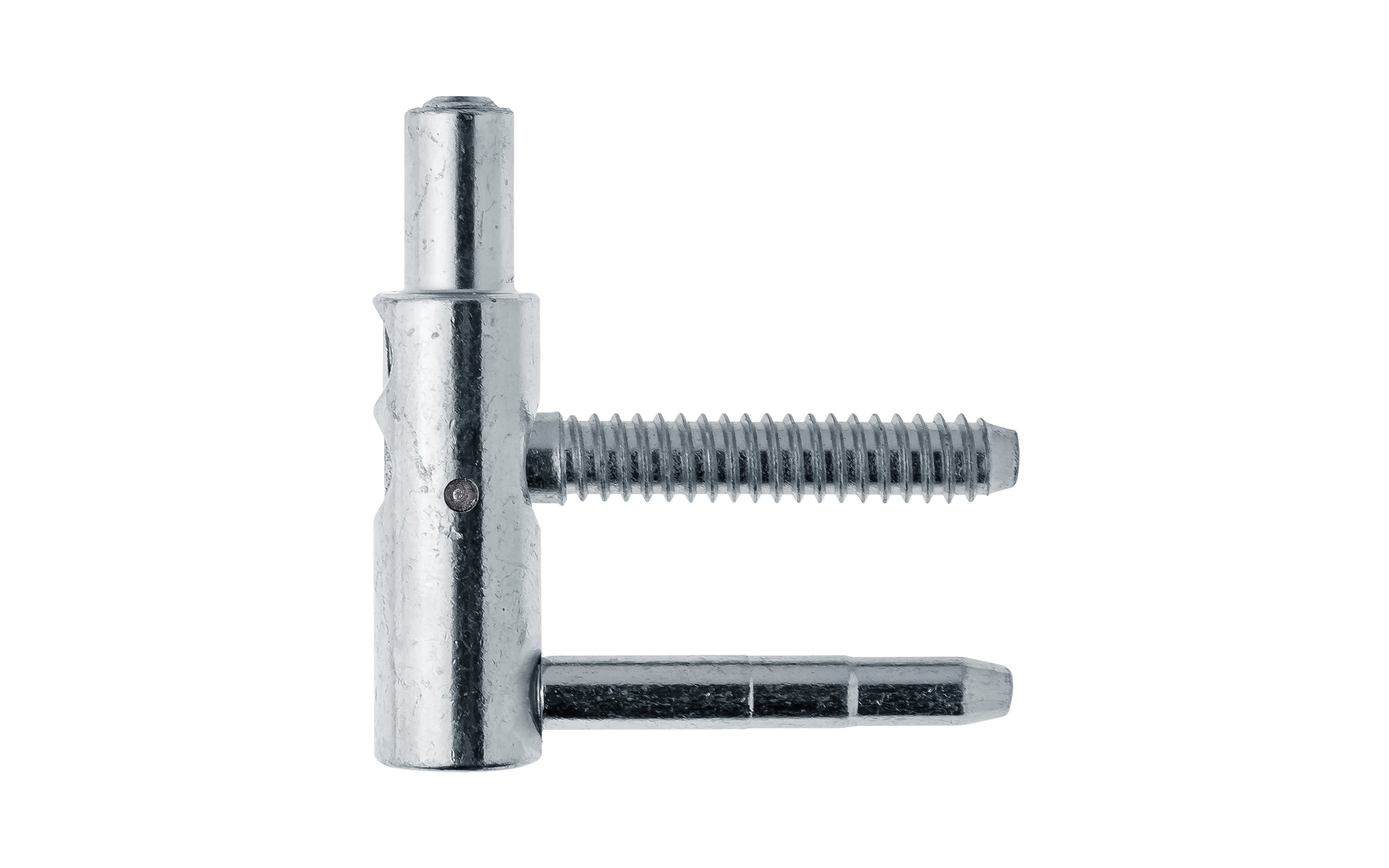

Otlav Exacta hinge, diameter 16 mm, light zinc-plated - complete set with male and female parts

Code: OTE16
Otlav Exacta hinge, diameter 16 mm, light zinc-plated - complete set with male and female parts
Otlav Exacta hinge, diameter 16 mm, light zinc-plated - complete set with male and female parts
Otlav Exacta hinge, diameter 16 mm, light zinc-plated - complete set with male and female parts
Otlav Exacta hinge, diameter 16 mm, light zinc-plated - complete set with male and female parts
Otlav Exacta hinge, diameter 16 mm, light zinc-plated - complete set with male and female parts
Otlav Exacta hinge, diameter 16 mm, light zinc-plated - complete set with male and female parts
Otlav Exacta hinge, diameter 16 mm, light zinc-plated - complete set with male and female parts
Otlav Exacta hinge, diameter 16 mm, light zinc-plated - complete set with male and female parts
Description
EXACTA has been created to combine the perfection of three-dimensional adjustment of windows and doors with an easy and above all reliable system which ensures a significant saving in time and money, since mounting the hinge requires only one person. It's available in diameter 13, 14, 16 and 20 mm. The 16 and 20 mm diameters are available also in
stainless steel.

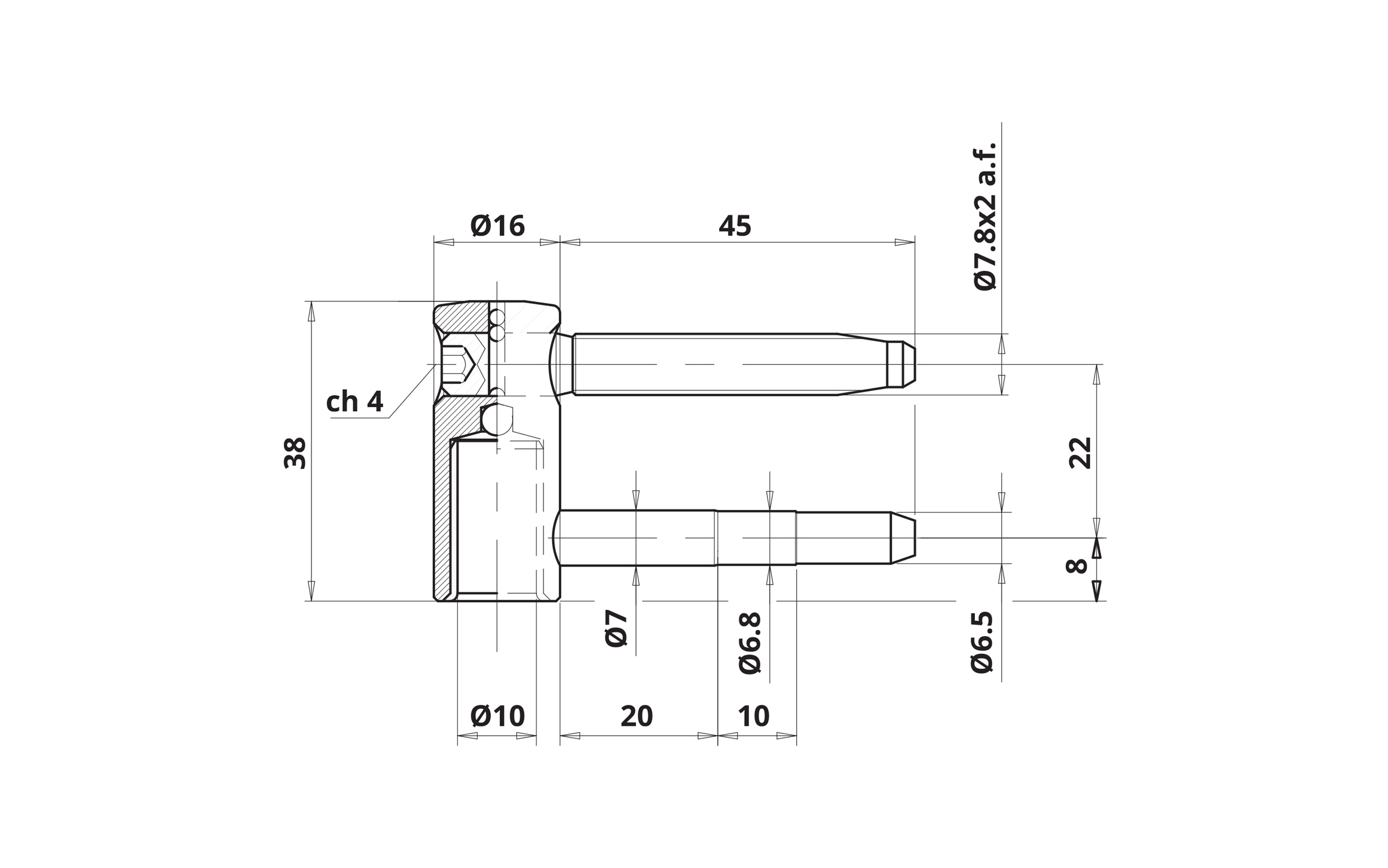

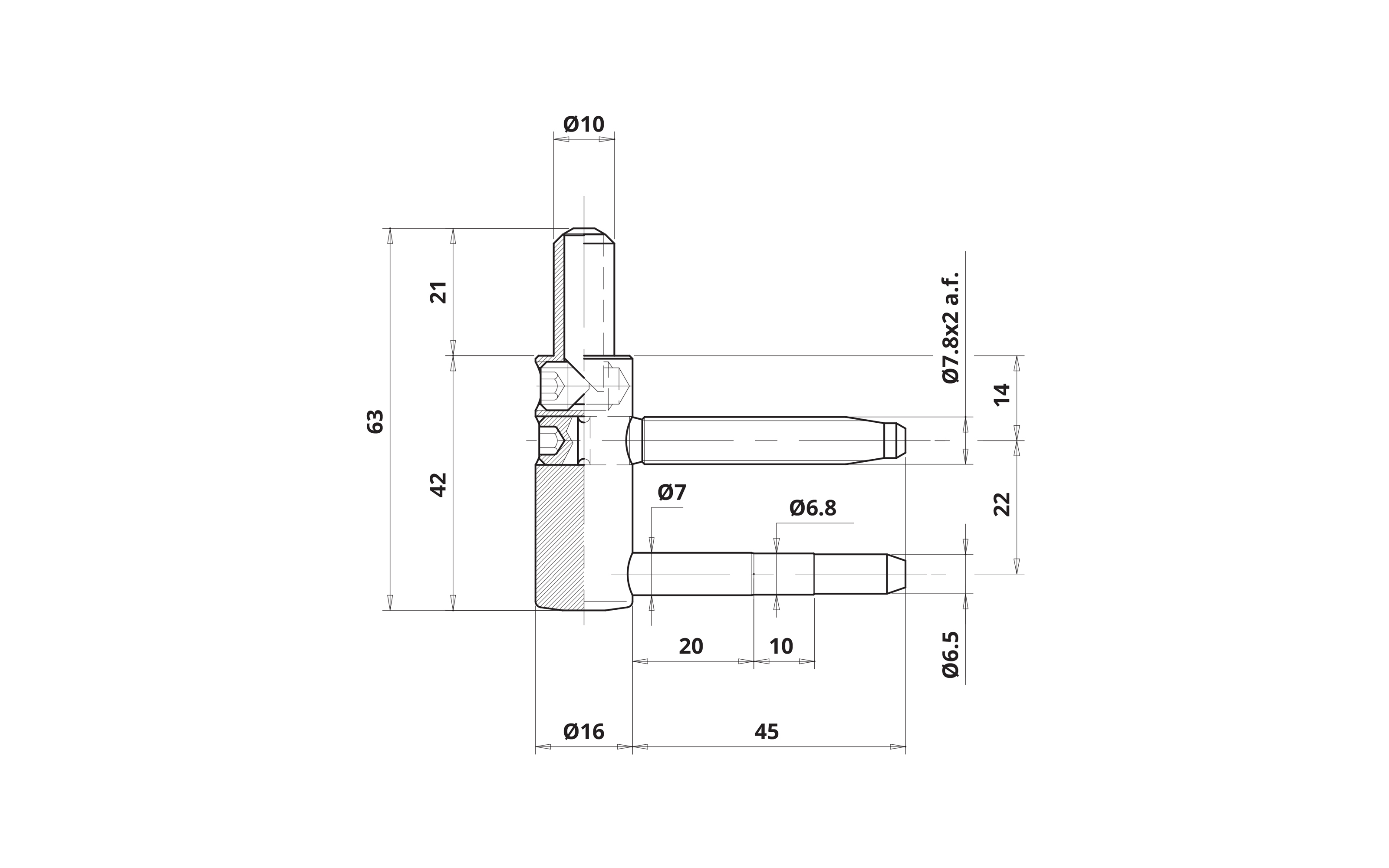

EXACTA O14 | Female part with 2 pins 7,8x38 mm - adjustable - with nylon bush +
EXACTA O14 | Male part with 2 pins 7,8x38 mm - adjustable.
Specification
Brand:
Otlav
Line:
Exacta
Type:
Exacta
Brand:
Exacta Mixacta
Area of use:
Wood
Diameter:
16 mm
Door weight:
100 kg
Finishing:
Zinc plated 12µ
set

€3.68*

tax incl price per unit
In stock
Any quantity discounts are applied in the cart
