INTEGRATO is a complete family of levellers suitable to align heavy duty wardrobes, bookcases and modular furniture.

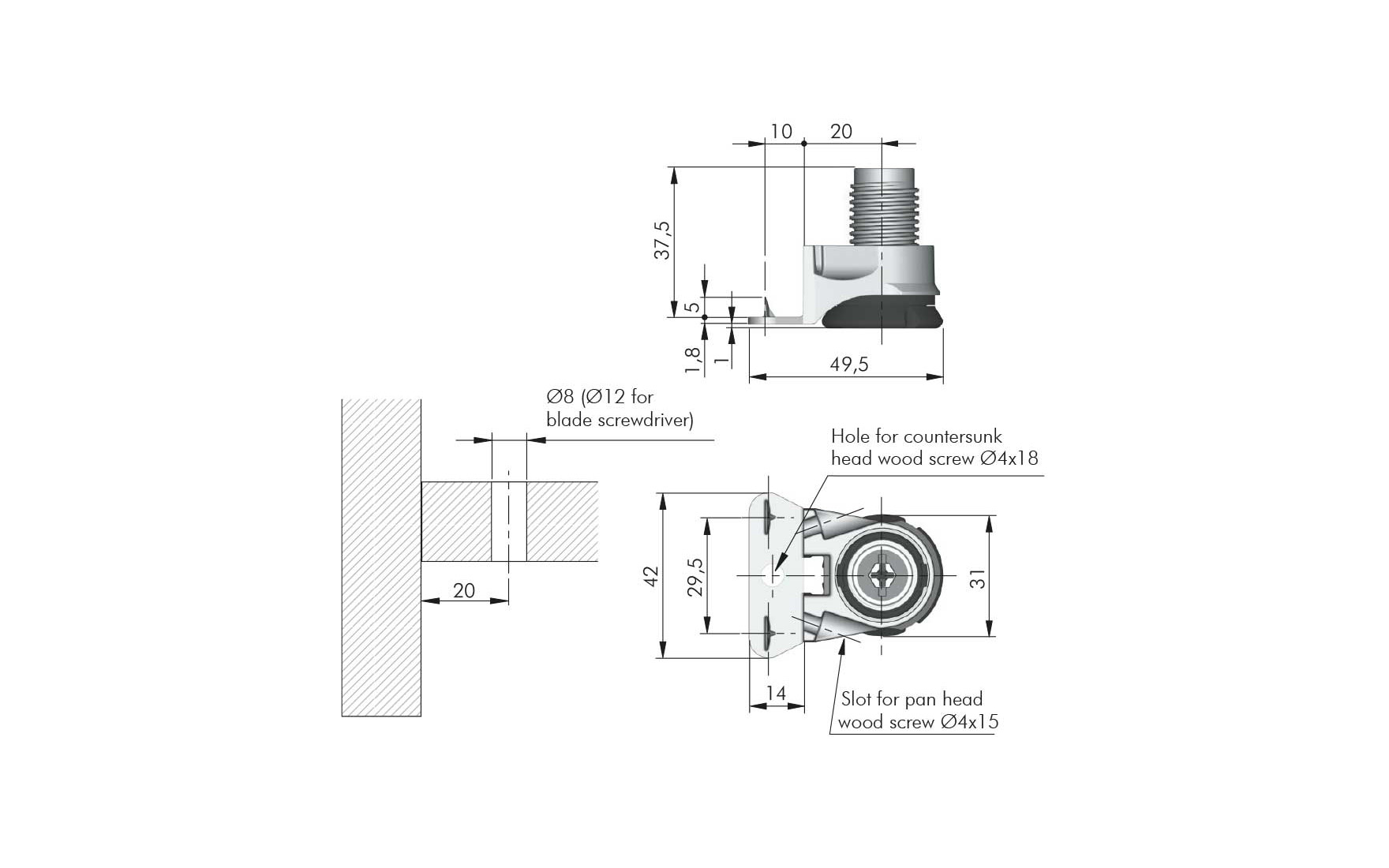

The leveller is installed and safely fixed onto the bottom of the carcase through a wide range of supports such as pins and screw holes, spikes and screw holes or just screw holes. A further securement in position can be obtained with a countersunk 4x18 mm length screw from underneath first and then with two panhead 3,5x15 mm length screws from the side if required.
The adjustment of the leveller can be carried out from above through a O 8 mm hole on the bottom panel, by using a S6mm allen wrench or both cross and blade screwdriver. The zinc alloy die-cast foot is provided with an indipendent engineering plastic glide in order to make the adjustment easier and to revent the scratching of the floor.
A bespoke spacer can be slotted over the leveller to give an extra structural support to the furniture bottom. The spacer is available in three heights. INTEGRATO levellers are available 25 mm adjustment.
• Suitable for aligning heavy wardrobes, bookcases and modular furniture
• Designed for elements with a heavier bottom
• Adjustment is made through the 8mm hole in the bottom of the element using a 6mm Allen key or Phillips screwdriver
• Zinc alloy legs with independent plastic slider for easy adjustment and to prevent floor scratching.
• Tested according to the Italian requirements of the CATAS INSTITUTE
The leveller is installed and safely fixed onto the bottom of the carcase through a wide range of supports such as pins and screw holes, spikes and screw holes or just screw holes. A further securement in position can be obtained with a countersunk 4x18 mm length screw from underneath first and then with two panhead 3,5x15 mm length screws from the side if required.
The adjustment of the leveller can be carried out from above through a O 8 mm hole on the bottom panel, by using a S6mm allen wrench or both cross and blade screwdriver. The zinc alloy die-cast foot is provided with an indipendent engineering plastic glide in order to make the adjustment easier and to revent the scratching of the floor.
A bespoke spacer can be slotted over the leveller to give an extra structural support to the furniture bottom. The spacer is available in three heights. INTEGRATO levellers are available 25 mm adjustment.
• Suitable for aligning heavy wardrobes, bookcases and modular furniture
• Designed for elements with a heavier bottom
• Adjustment is made through the 8mm hole in the bottom of the element using a 6mm Allen key or Phillips screwdriver
• Zinc alloy legs with independent plastic slider for easy adjustment and to prevent floor scratching.
• Tested according to the Italian requirements of the CATAS INSTITUTE
