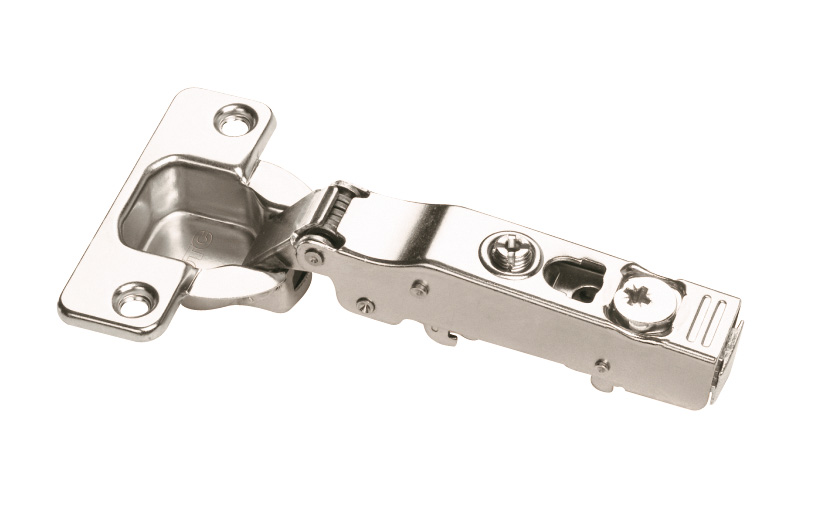

Full overlay hinge with soft close. Opening angle 110°.

Code: S0SC
Full overlay hinge with soft close. Opening angle 110°.
Full overlay hinge with soft close. Opening angle 110°.
Full overlay hinge with soft close. Opening angle 110°.
Full overlay hinge with soft close. Opening angle 110°.
Full overlay hinge with soft close. Opening angle 110°.
Full overlay hinge with soft close. Opening angle 110°.
Full overlay hinge with soft close. Opening angle 110°.
Full overlay hinge with soft close. Opening angle 110°.
Full overlay hinge with soft close. Opening angle 110°.
Full overlay hinge with soft close. Opening angle 110°.
Full overlay hinge with soft close. Opening angle 110°.
Full overlay hinge with soft close. Opening angle 110°.
Description

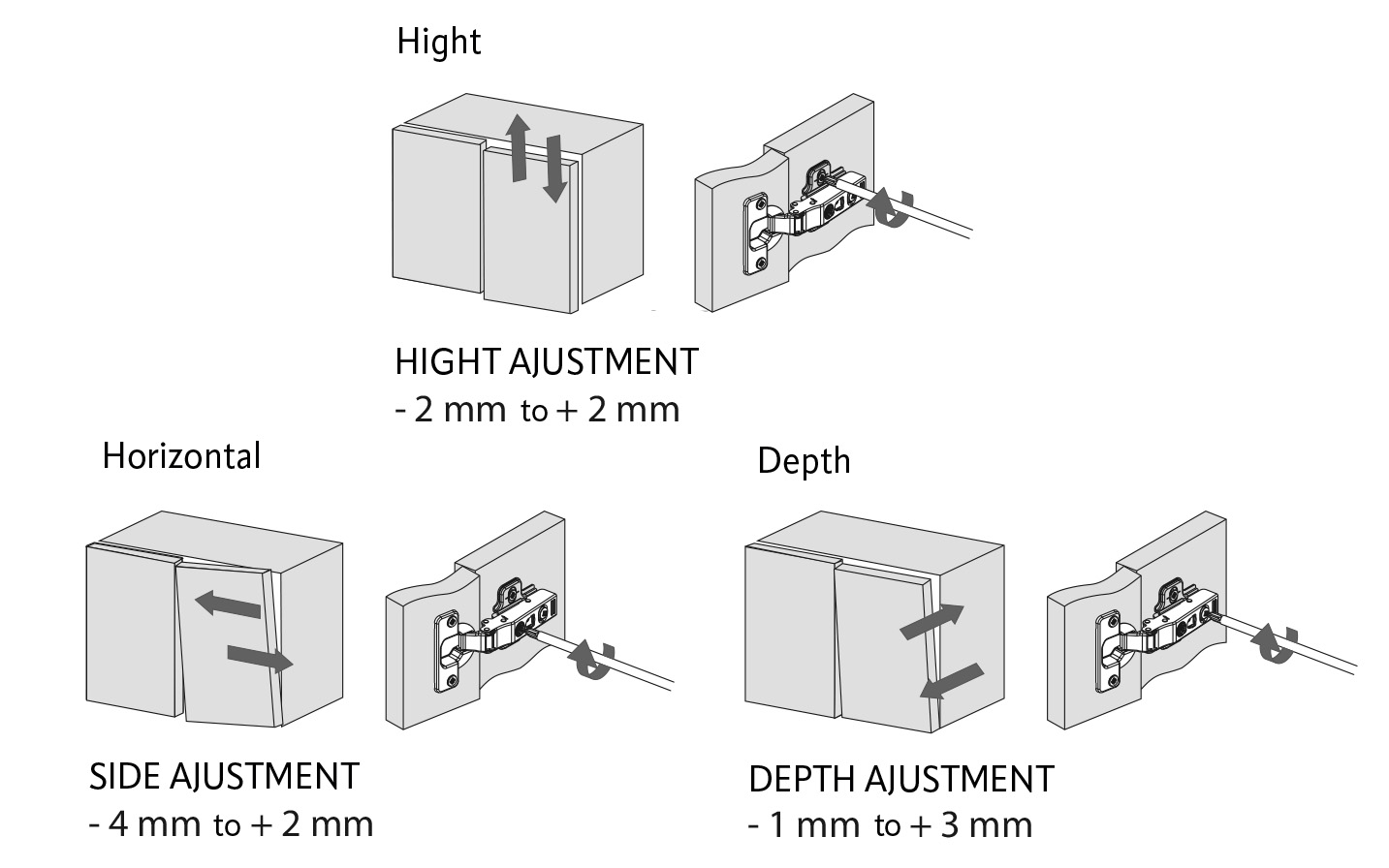

Concealing the damper inside the arm not only enables a larger cylinder than other hinges, but also results in a clean design. Having a long piston stroke, the damper’s smooth motion contributes to the customer’s enjoyment of door movement. The effortless, snap connection of the hinge to mounting plate make installation a breeze. The 3-dimensional, cam adjustments of height, depth and side-to-side make final door alignment a simple process.
Specification
Brand:
DTC
Color:
Nickel
Hinge type:
Full overlay
Hinge types:
With spring
Soft closing:
Yes
Color
Hinge type
Soft closing
pcs

€1.84*

tax incl price per unit
In stock
Any quantity discounts are applied in the cart
